Boundary Events vs Event Subprocess in BPMN — Complete Comparison
When modeling real workflows in BPMN, you often need to react to unexpected situations:
User cancels request
Timeout occurs
SLA exceeded
Payment failure
Two BPMN constructs handle this:
👉 Boundary Events
👉 Event Subprocess
Many developers confuse them — but they behave very differently.
This guide explains when to use each with real scenarios.
📌 Quick Definition
Boundary Event
Attached to a specific activity (task).
Event Subprocess
Attached to the entire process scope.

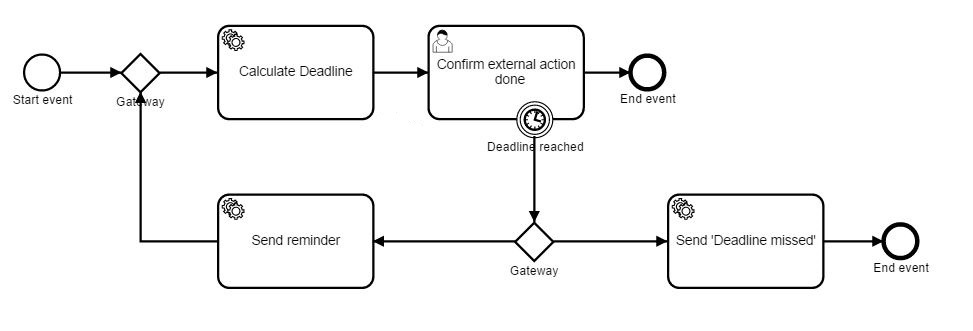

🖼️ Visual Difference
🧠 Conceptual Understanding
Think like this:
Boundary Event → “Watch this task”
Event Subprocess → “Watch the whole process”
🔥 Behavior Comparison
| Feature | Boundary Event | Event Subprocess |
|---|---|---|
| Scope | Single activity | Entire process |
| Trigger | Only when task active | Anytime during process |
| Use Case | Task-level exception | Global business event |
| Flow Connection | Attached to task | No incoming sequence |
| Visibility | Local | Global |
🛠 Real Scenario — Loan Approval
Process:
Now events:
User cancels request anytime
Approval takes too long
We must model correctly.
Case 1: Manager Takes Too Long
Use Boundary Timer Event
Because timeout applies only to approval task.
Case 2: Customer Cancels Anytime
Use Event Subprocess
Because cancellation applies globally.
🖼️ Real Scenario Diagram
🔧 Boundary Event Types
Common types:
Timer
Error
Message
Escalation
Example:
Timeout while user filling form.
Interrupting vs Non-Interrupting Boundary
Interrupting → cancels task
Non-interrupting → parallel flow
🔧 Event Subprocess Types
Triggers:
Message
Timer
Signal
Escalation
Example:
Customer cancellation message.
🖼️ Interrupting Behavior Comparison
⚠️ Common Modeling Mistakes
❌ Using boundary event for global cancellation
❌ Using event subprocess for task timeout
❌ Connecting flow into event subprocess
❌ Forgetting interrupting behavior
🎯 When to Use What (Rule of Thumb)
Use Boundary Event if:
✔ Event relates to specific task
✔ Exception belongs to activity
✔ Local timeout or error
Use Event Subprocess if:
✔ Event affects entire process
✔ External business trigger
✔ Global cancellation
🔐 Best Practice (Enterprise Modeling)
Timer SLA → Boundary Event
Customer Action → Event Subprocess
System Failure → Error Boundary
Business Change → Message Subprocess
🧠 Practical Memory Trick
Boundary = Local Exception
Event Subprocess = Global Event
🎯 Conclusion
Both elements are essential but serve different responsibilities:
Boundary Events handle activity-level exceptions
Event Subprocess handles process-level reactions
Correct usage prevents broken workflows and improves clarity.
