Difference Between Record Producer and Catalog Item in ServiceNow

 When to Use What (Practical Explanation)

Many beginners assume Record Producer and Catalog Item are the same.

Both appear in the Service Portal.
Both accept user input.
Both create records.

But they serve completely different purposes.

Choosing the wrong one leads to poor design and complex maintenance later.

The Core Difference (In One Line)

Catalog Item → Creates a service request process
Record Producer → Creates a record directly in a table

How Catalog Item Works

Catalog item follows ITSM lifecycle:

REQ → RITM → Tasks → Approvals → Fulfillment

It represents:

“User is requesting a service”

Examples:

  • Laptop request

  • Software access

  • Employee onboarding

This involves workflow automation.

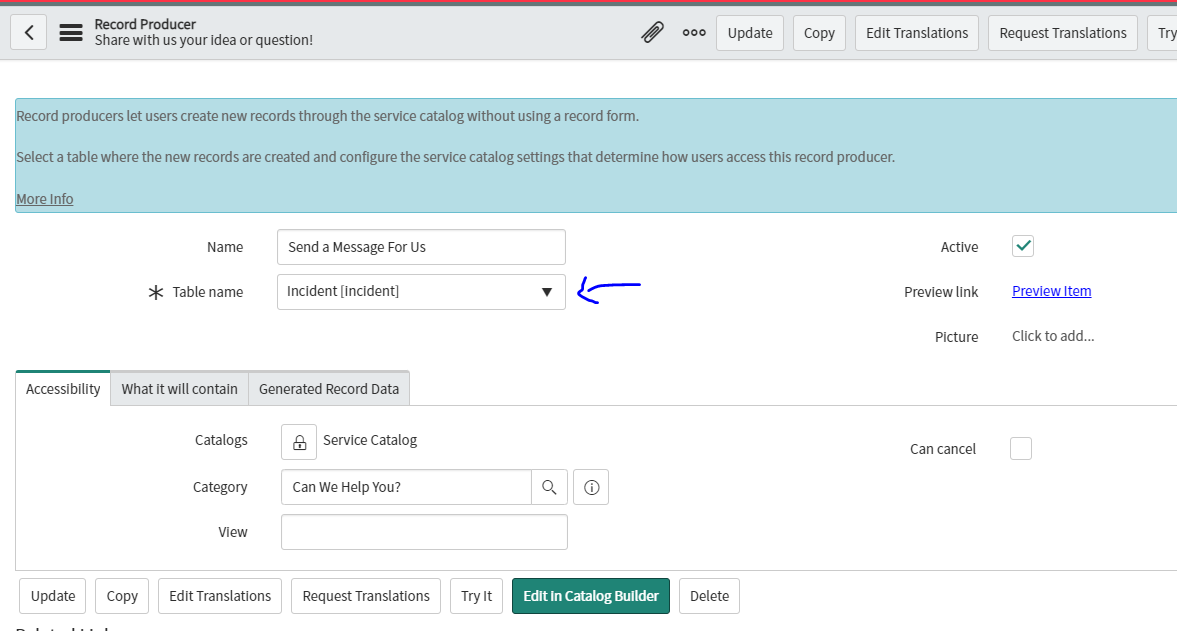

How Record Producer Works

Record Producer directly inserts a record into a table.

No request structure.

Portal Form → Script → Record Created

Examples:

  • Create Incident

  • Report Issue

  • HR complaint form

It represents:

“User is reporting something”

Key Differences Table

FeatureCatalog ItemRecord Producer
PurposeRequest a serviceCreate a record
Creates REQ/RITMYesNo
Tasks & ApprovalsAutomaticScripted manually
Workflow/FlowCore featureOptional
Use CaseProvisioningReporting
ComplexityStructuredSimple

Real-World Analogy

Catalog Item = Ordering a product online
Order → Processing → Shipping → Delivery

Record Producer = Submitting a complaint form
Form → Ticket created

When To Use Catalog Item

Use when:

  • Multiple teams involved

  • Approvals required

  • Fulfillment steps exist

  • Automation needed

When To Use Record Producer

Use when:

  • Only one record needed

  • No fulfillment workflow

  • Quick ticket creation

  • Reporting or intake forms

Common Mistake

Creating incidents using catalog item.

This forces unnecessary RITM and task layers and complicates reporting.

Incidents should be created using record producers.

Conclusion

Record Producer and Catalog Item are not alternatives — they serve different business needs.

Catalog Item = Service Delivery
Record Producer = Data Intake

Using the correct one simplifies implementation and maintenance.
