Java Memory Management Explained — Heap, Stack & Garbage Collection

 Memory management is one of the most important concepts in backend development.

Many production issues — performance drops, slow APIs, crashes — are actually memory problems.

In Java (programming language), memory is handled automatically by the JVM, but understanding how it works is essential to write scalable applications.

This guide explains the JVM memory model, garbage collection, and real-world impact.

---

📌 Why Memory Management Matters

Poor memory understanding leads to:

• OutOfMemoryError

• Slow response time

• High CPU usage

• Random production failures

Good memory understanding leads to:

✔ Stable applications
✔ Better performance
✔ Faster debugging

---

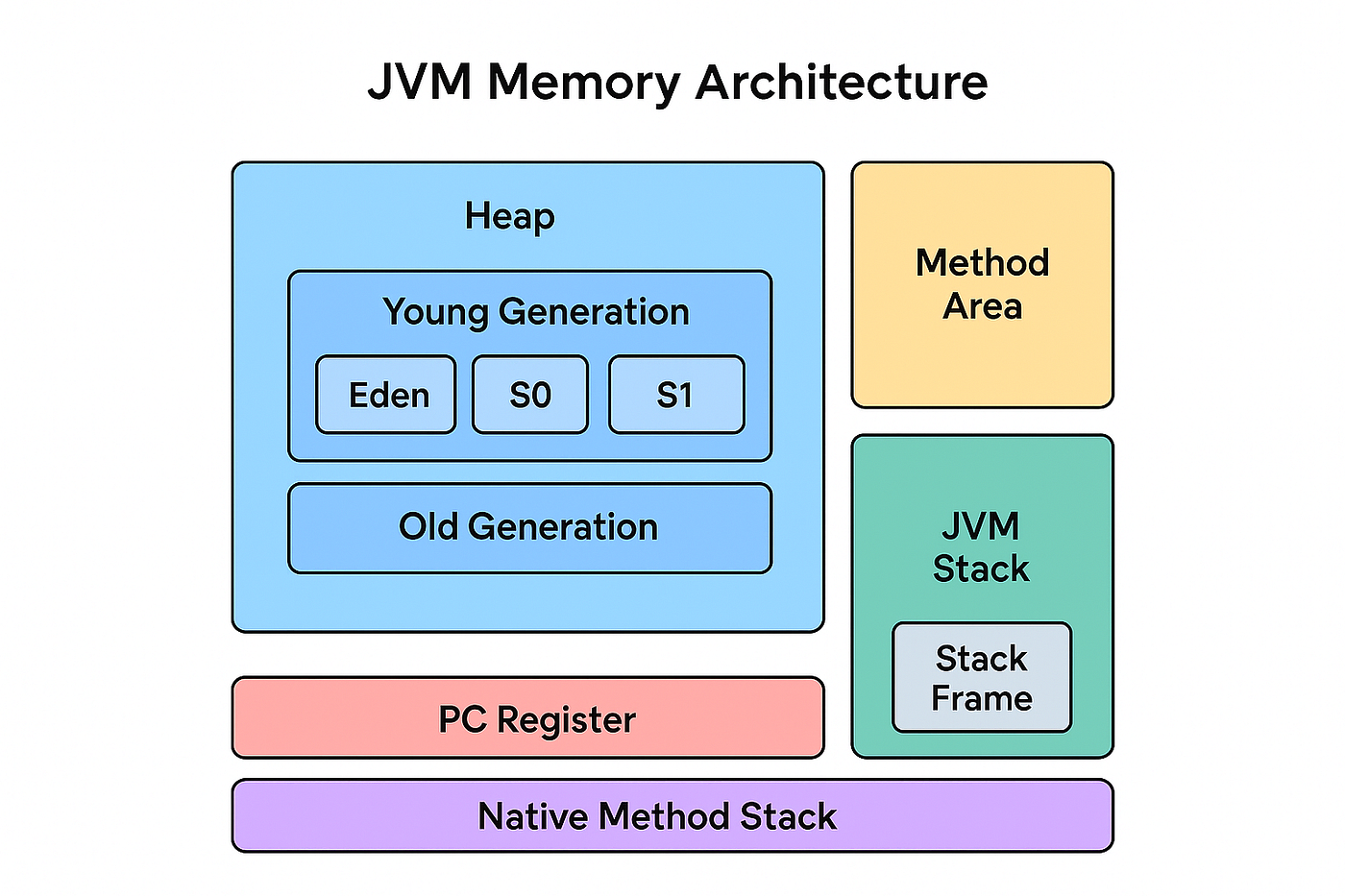

🖼️ JVM Memory Structure

---

JVM Memory Areas

The JVM divides memory into different parts.

---

1️⃣ Stack Memory

Each thread has its own stack.

Stores:

• Method calls

• Local variables

• References

Key Points

• Very fast access

• Automatically cleaned after method execution

• StackOverflowError if too deep recursion

Example

public void calculate() {
    int a = 10;
    int b = 20;
    int sum = a + b;
}

Variables live only inside the method call stack.

---

2️⃣ Heap Memory

Stores actual objects.

Shared across all threads.

Example

User user = new User("John");

Object lives in heap, reference in stack.

---

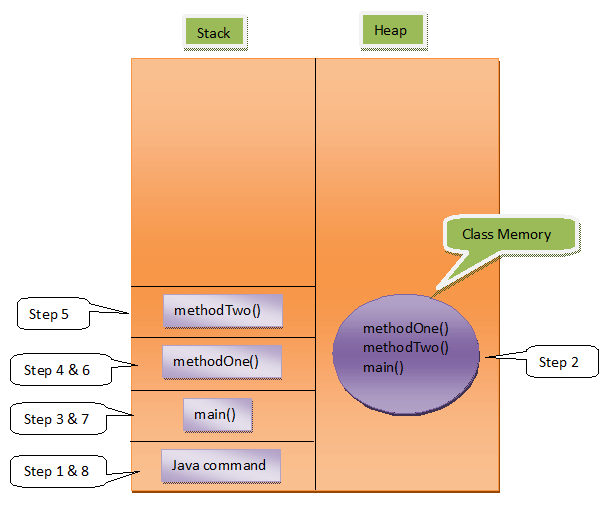

🖼️ Heap vs Stack

---

Heap Generations

Heap is divided into generations.

Area	Purpose
Young	New objects
Old	Long-living objects
Metaspace	Class metadata

---

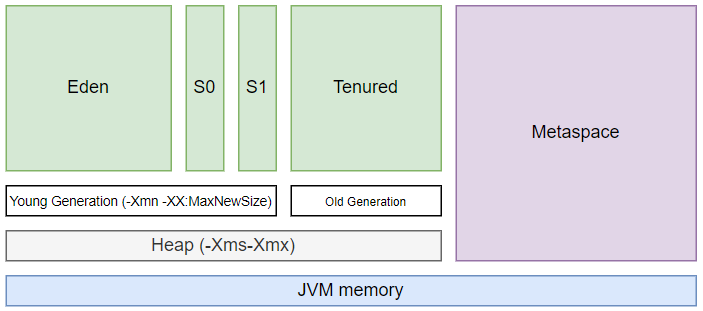

🖼️ Generational Heap

---

Garbage Collection (GC)

Java automatically removes unused objects.

Garbage Collector frees memory when objects are no longer referenced.

---

GC Process

1. Object created → Young Gen

2. Survives → Old Gen

3. Unused → removed by GC

---

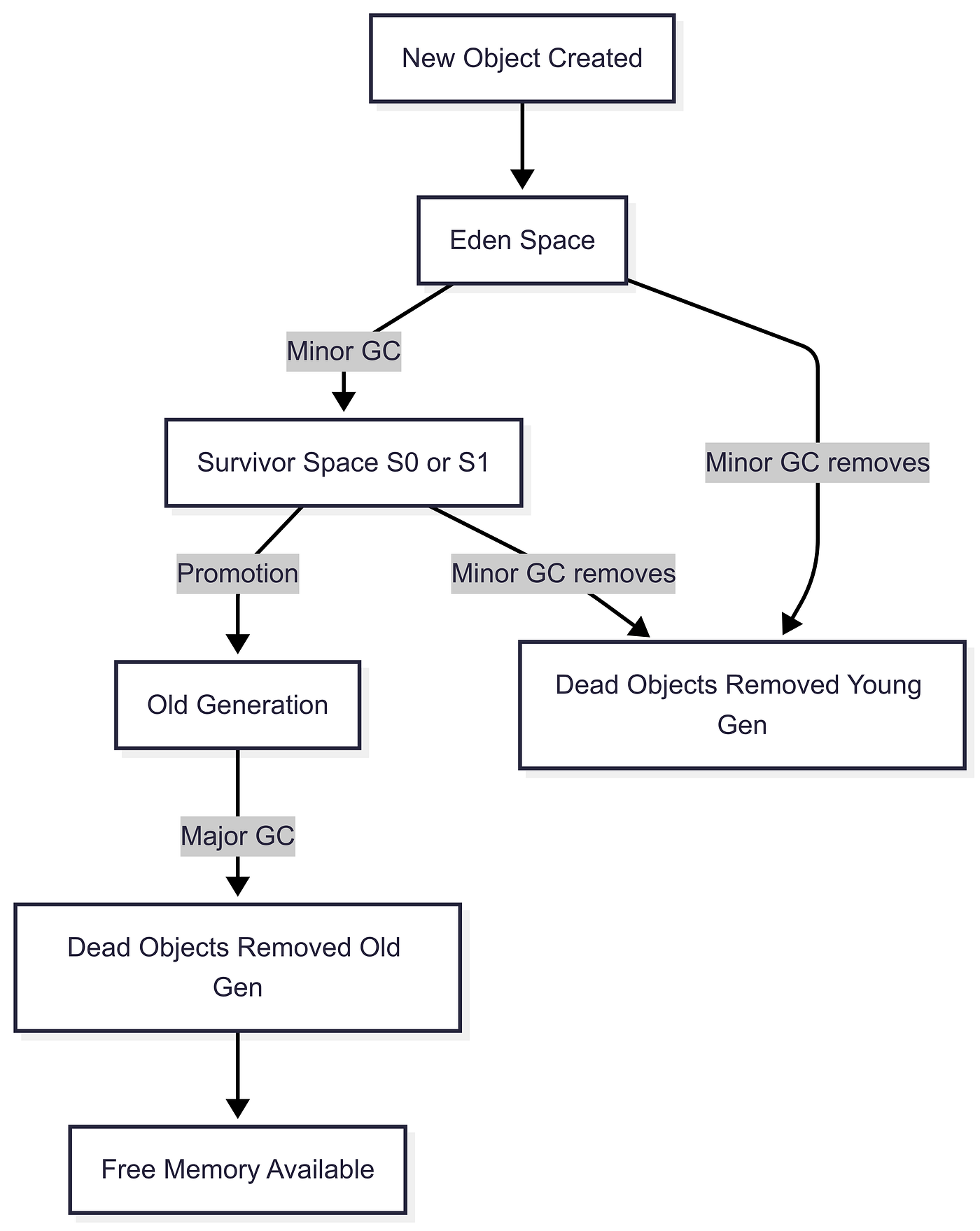

🖼️ Garbage Collection Cycle

---

Types of GC

GC	Purpose
Minor GC	Clean young generation
Major GC	Clean old generation
Full GC	Clean entire heap

---

Common Memory Problems

Memory Leak

Objects referenced but unused.

OutOfMemoryError

Heap full.

GC Thrashing

Too frequent GC cycles.

---

Practical Example — Memory Leak

static List<String> cache = new ArrayList<>();

public void addData(String value){
    cache.add(value);
}

Static list keeps growing → never cleaned.

---

JVM Monitoring Commands

Check memory:

jps
jstat -gc <pid>
jmap -heap <pid>

---

Performance Tips

✔ Avoid static collections
✔ Close resources
✔ Use caching carefully
✔ Prefer primitive types when possible

---

📚 Recommended Reading

• Java Collections Explained

• Spring Boot Memory Leak Debugging Guide

• Backend Production Error Troubleshooting

• Microservices Architecture Basics

---

🎯 Conclusion

Java manages memory automatically, but developers must understand:

• Heap vs Stack

• GC behavior

• Object lifecycle

This knowledge prevents most production failures.

---
