BPMN Event Subprocess Explained with Real Example

 In BPMN workflows, sometimes you must react to an event without breaking the main process flow.

Example:

  • Customer cancels order while approval is ongoing

  • Payment timeout occurs

  • SLA deadline exceeded

  • Emergency escalation

This is solved using an Event Subprocess.

📌 What is an Event Subprocess?

An Event Subprocess is a subprocess triggered by an event inside a running process instance.

It can:

  • Interrupt the current flow

  • Or run in parallel

It does NOT require sequence flow connection.

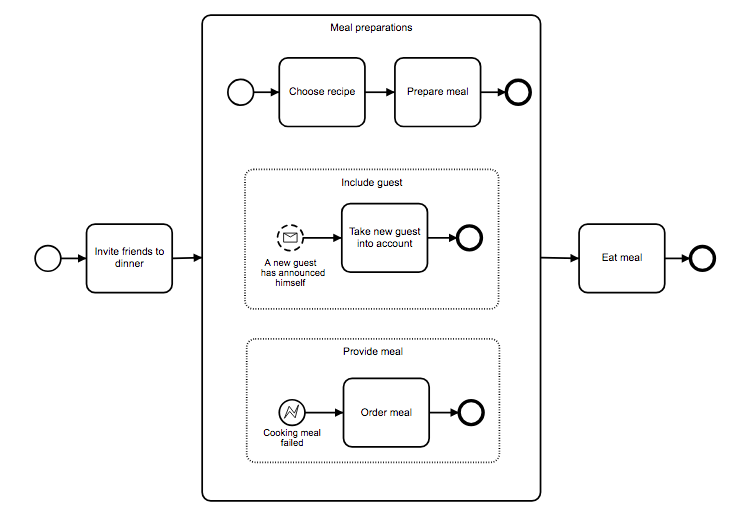

🖼️ Event Subprocess Diagram

🧠 Why Not Just Use Boundary Events?

Boundary Event → attached to a task
Event Subprocess → attached to entire process

So event subprocess listens globally.

🔥 Types of Event Subprocess

There are two main types:

1️⃣ Interrupting Event Subprocess

When triggered:

👉 Stops current workflow path

Used for:

  • Order cancellation

  • Fraud detection

  • Emergency stop

Behavior

Process tokens inside scope are cancelled.

2️⃣ Non-Interrupting Event Subprocess

When triggered:

👉 Runs parallel flow
👉 Main workflow continues

Used for:

  • Notifications

  • Logging

  • SLA monitoring

  • Reminder emails

🖼️ Interrupting vs Non-Interrupting

🛠 Real Example – Order Processing

Main process:

Receive Order → Manager Approval → Ship Order

But customer may cancel anytime.

We add:

Event Subprocess → Message: CANCEL_ORDER

Flow

If message received:

  • Approval stops

  • Shipping stops

  • Order marked cancelled

🧾 BPMN XML Example

<bpmn:subProcess id="cancelSubprocess" triggeredByEvent="true">
  <bpmn:startEvent id="cancelEvent">
    <bpmn:messageEventDefinition messageRef="CancelMessage"/>
  </bpmn:startEvent>

  <bpmn:scriptTask id="cancelOrder" name="Cancel Order"/>
</bpmn:subProcess>

🖼️ Order Cancellation Scenario

🛠 SLA Escalation Example (Non-Interrupting)

Use case:
Manager not approving within 24 hours.

Event subprocess triggered by Timer Event

Result:

  • Send reminder email

  • Log escalation

  • Process continues

⚠️ Common Mistakes

❌ Using boundary event for global cancel
❌ Forgetting interrupting vs non-interrupting
❌ Connecting sequence flow to subprocess

Event subprocess should not have incoming flow.

🔐 Best Practices

✔ Use message events for external triggers
✔ Use timer events for SLA monitoring
✔ Keep subprocess small
✔ Avoid heavy logic inside event subprocess

🎯 Conclusion

Event subprocess is powerful for handling:

  • Cancellations

  • Timeouts

  • Escalations

  • Exceptions

It allows workflows to react to real-world events cleanly.
