Spring Boot + Camunda External Task Pattern (Complete Guide)

 In enterprise workflows, long-running business logic should not execute inside the workflow engine.

Instead, Camunda uses the External Task Pattern — where workers fetch tasks and process them independently.

This is the most scalable way to integrate microservices with BPM.

In this guide you will learn:

• What External Tasks are

• Why they are important

• How to implement using Spring Boot

• Best practices for production

---

📌 What is the External Task Pattern?

In Camunda Platform, a Service Task can be executed outside the engine.

Instead of pushing work → the worker pulls the job.

So the engine never blocks.

---

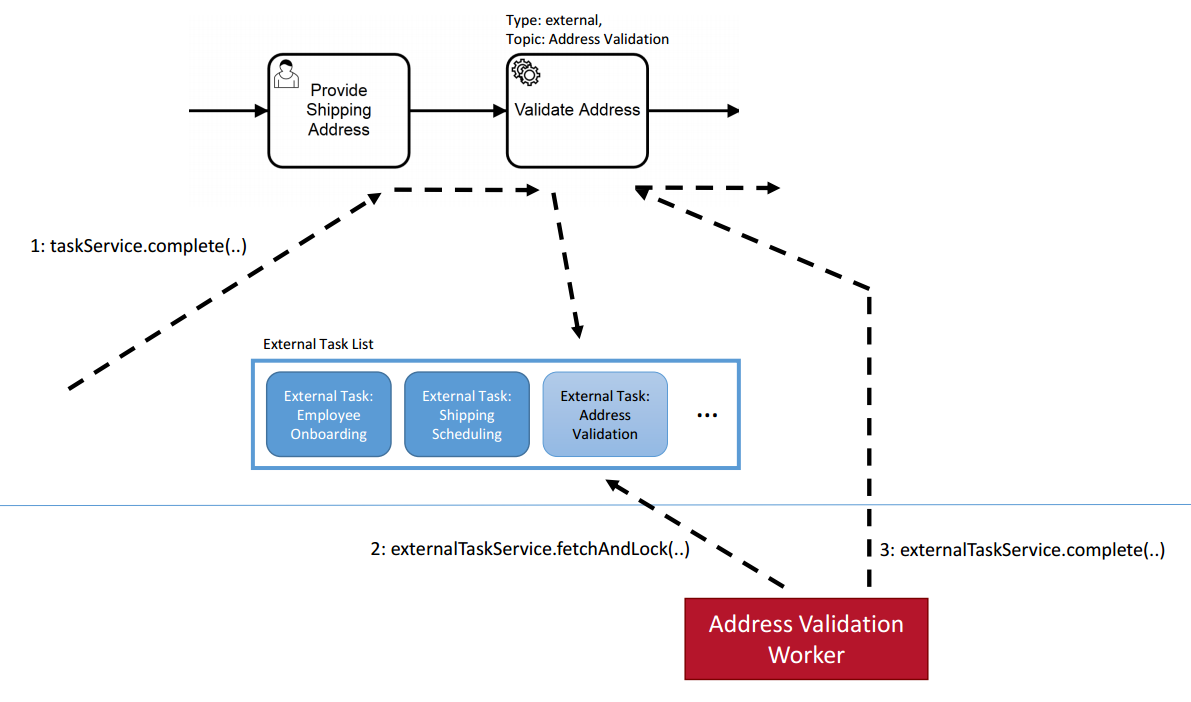

🖼️ External Task Architecture

---

🧠 Why External Tasks?

Traditional Service Task:

Engine calls service directly
→ Tight coupling
→ Failures block workflow

External Task:

Worker fetches job
→ Loose coupling
→ Retry possible
→ Highly scalable

---

🛠 Step 1: Create External Service Task in BPMN

In Modeler:

Service Task → Type = External

Topic name example:

payment-service

Now Camunda waits for a worker.

---

🛠 Step 2: Add Dependencies in Spring Boot

<dependency>
  <groupId>org.camunda.bpm.springboot</groupId>
  <artifactId>camunda-bpm-spring-boot-starter-external-task-client</artifactId>
</dependency>

---

🛠 Step 3: Configure Worker

camunda:
  bpm:
    client:
      base-url: http://localhost:8080/engine-rest
      async-response-timeout: 10000

---

🛠 Step 4: Implement External Task Worker

@Component
@ExternalTaskSubscription("payment-service")
public class PaymentWorker implements ExternalTaskHandler {

    @Override
    public void execute(ExternalTask task, ExternalTaskService service) {

        String orderId = task.getVariable("orderId");

        System.out.println("Processing payment for " + orderId);

        service.complete(task);
    }
}

Worker automatically polls tasks.

---

🖼️ Worker Execution Flow

---

🔁 Retry & Failure Handling

If service fails:

service.handleFailure(
    task,
    "Payment failed",
    "Gateway timeout",
    3,
    60000
);

Camunda retries automatically.

---

🔐 Lock Duration

Worker locks job while processing.

Prevents multiple workers executing same task.

Example:

lockDuration = 10000 ms

---

🧪 Complete Flow

1. Process reaches service task

2. Engine creates external task

3. Worker fetches task

4. Worker executes logic

5. Worker completes task

6. Process continues

---

⚠️ Common Mistakes

❌ Short lock duration
❌ No retries configured
❌ Business logic inside engine
❌ Blocking API calls

---

🏆 Production Best Practices

✔ Use multiple workers
✔ Idempotent services
✔ Configure retries
✔ Separate microservices
✔ Monitor failures

---

🎯 When to Use External Tasks

Use for:

• Microservices

• Remote APIs

• Long processing

• Payment gateways

• Third-party integrations

Avoid for:

• Simple Java logic

• Short execution

---

🎯 Conclusion

External Task Pattern makes Camunda:

• Scalable

• Resilient

• Microservice-friendly

It is the recommended approach for enterprise integration.
