Tutoriel jBPM Workflow — Inclusive Gateway expliqué

 Dans les workflows métier, il arrive que plusieurs chemins doivent être exécutés selon certaines conditions — mais pas forcément un seul ni tous.

Exemple :

  • Si montant > 10 000 → validation manager

  • Si client nouveau → vérification KYC

  • Si produit fragile → contrôle qualité

Parfois une seule condition est vraie, parfois plusieurs.

Pour cela on utilise le Inclusive Gateway (OR Gateway).

Cette architecture est couramment utilisée dans les environnements microservices modernes.

👉 environnements microservices modernes

📌 Qu’est-ce qu’un Inclusive Gateway ?

Le Inclusive Gateway permet d’activer une ou plusieurs branches simultanément selon les conditions.

Contrairement :

  • Exclusive Gateway → un seul chemin

  • Parallel Gateway → tous les chemins

  • Inclusive Gateway → certains chemins

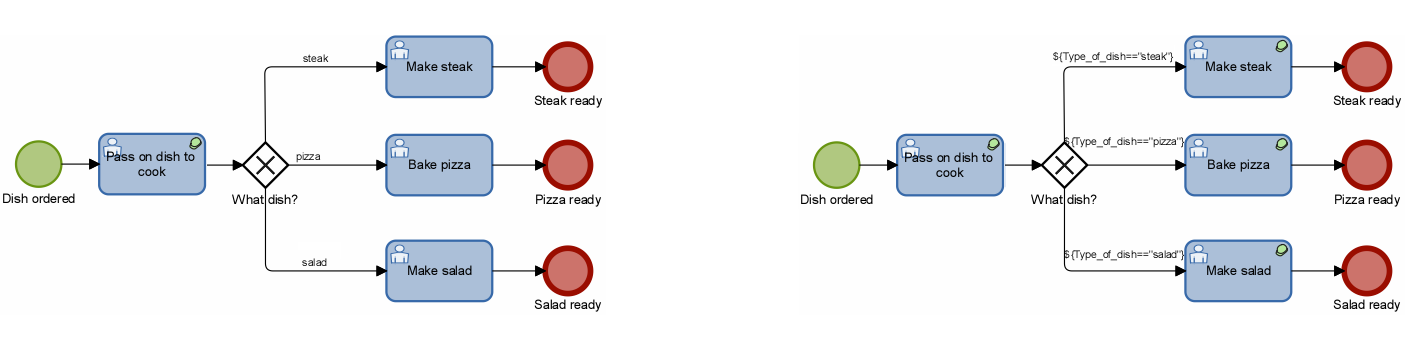

🖼️ Diagramme Inclusive Gateway

🧠 Comment fonctionne l’Inclusive Gateway

Il existe deux comportements :

1️⃣ Division conditionnelle

Plusieurs flux peuvent démarrer si leurs conditions sont vraies.

2️⃣ Synchronisation intelligente

Le processus attend uniquement les branches réellement activées.

🛠 Exemple réel — Traitement de commande

Règles :

  • Montant élevé → approbation manager

  • Nouveau client → vérification identité

  • Livraison internationale → vérification douane

Plusieurs validations peuvent se produire en même temps.

🖼️ Exemple métier

🧾 Configuration dans jBPM

Dans jBPM Modeler :

  1. Ajouter Gateway → Inclusive Gateway

  2. Ajouter conditions sur les flux sortants

  3. Ajouter un Inclusive Gateway de synchronisation

Exemple logique

Start
  ↓
Inclusive Gateway
  ↙      ↓      ↘
Cond A  Cond B  Cond C
  ↘      ↓      ↙
Inclusive Gateway (Join)
  ↓
End

⚠️ Erreurs fréquentes

❌ Oublier le gateway de synchronisation
❌ Utiliser pour simple décision
❌ Conditions qui se chevauchent mal

🔐 Bonnes pratiques

✔ Conditions claires et indépendantes
✔ Toujours ajouter Join Gateway
✔ Tester tous les cas possibles
✔ Documenter règles métier

🎯 Quand utiliser Inclusive Gateway

Utiliser pour :

  • Règles métier multiples

  • Validations optionnelles

  • Vérifications conditionnelles

Ne pas utiliser pour :

  • Exécution parallèle obligatoire

  • Choix unique

🎯 Conclusion

L’Inclusive Gateway permet de modéliser la réalité métier :

Ni tout, ni un seul → seulement ce qui est nécessaire.

Il est indispensable pour les workflows flexibles.
