Authentification Liferay avec OAuth2 — Guide complet

 Les applications modernes n’authentifient plus directement les utilisateurs.

Elles délèguent l’authentification à un fournisseur d’identité (Google, Azure AD, Keycloak…) via OAuth2.

Dans Liferay, OAuth2 permet le SSO sécurisé entre portails, microservices et APIs.

Ce guide explique comment fonctionne OAuth2 et comment le configurer.

Cette architecture est couramment utilisée dans les environnements microservices modernes.

👉 environnements microservices modernes

📌 Qu’est-ce que OAuth2 dans Liferay ?

OAuth2 permet :

  • Connexion externe (Google / Azure / IdP)

  • Accès API sécurisé

  • Authentification par token

  • Frontend et backend découplés

L’application n’utilise plus de mot de passe → seulement des tokens d’accès.

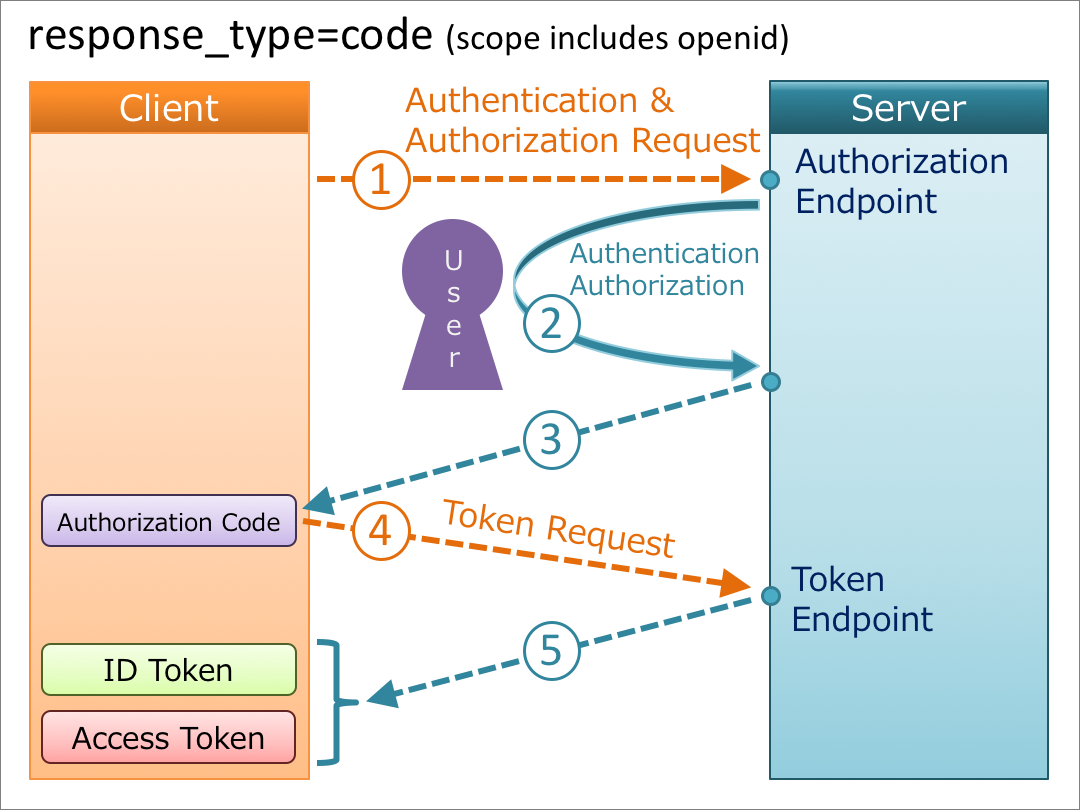

🖼️ Flux d’authentification OAuth2

🧠 Rôles OAuth2

RôleDescription
Resource OwnerUtilisateur
ClientLiferay
Authorization ServerFournisseur d’identité
Resource ServerAPIs

🛠 Étape 1 — Activer OAuth2 dans Liferay

Aller dans :

Control Panel → Security → OAuth2 Administration

Créer une nouvelle application OAuth2.

🛠 Étape 2 — Configurer le client

Renseigner :

  • Name

  • Client ID

  • Client Secret

  • Redirect URI

Exemple :

http://localhost:8080/c/portal/oauth2/redirect

🖼️ Configuration OAuth2

🛠 Étape 3 — Configurer le fournisseur d’identité

Exemple Keycloak :

Valid Redirect URI:
http://localhost:8080/*

Scopes :

openid profile email

🛠 Étape 4 — Mapper les attributs utilisateur

Associer les champs IdP avec Liferay :

IdPLiferay
emailemailAddress
given_namefirstName
family_namelastName

🧠 Étape 5 — Utilisation du token

Après connexion Liferay reçoit :

access_token
refresh_token
id_token

Utilisation API :

Authorization: Bearer eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9

🖼️ Exemple token

⚠️ Problèmes fréquents

Redirect URI invalide
→ doit correspondre exactement

Utilisateur non créé
→ mapping manquant

Boucle de login
→ horloge serveur différente

Token refusé
→ mauvais scope/audience

🔐 Bonnes pratiques sécurité

✔ HTTPS obligatoire
✔ Expiration courte des tokens
✔ Refresh tokens
✔ Limiter scopes
✔ Synchroniser horloge serveur

📚 Articles recommandés

Ces sujets complètent une architecture d’entreprise sécurisée.

🎯 Conclusion

OAuth2 rend Liferay prêt pour l’entreprise :

  • Authentification centralisée

  • APIs sécurisées

  • Accès multi-applications

Une fois configuré correctement, les utilisateurs accèdent à toutes les applications sans se reconnecter.
