Camunda Parallel Gateway Explained: Fork, Join, and Deadlock Scenarios



Camunda Parallel Gateway Explained (Fork, Join, and Deadlock Scenarios)

Parallel gateways in Camunda are powerful—but also one of the most misunderstood BPMN elements.

Many developers face issues like:

  • Execution stuck at gateway

  • Tokens not synchronizing

  • Unexpected deadlocks

In this guide, we’ll clearly explain:

  • Fork (parallel split)

  • Join (synchronization)

  • Deadlock scenarios & fixes

🔹 1. What is a Parallel Gateway?


A Parallel Gateway (AND Gateway) is used to:

  • Split execution into multiple paths

  • Synchronize multiple paths back into one

👉 It works with tokens, not conditions

🔹 2. Fork (Parallel Split)


When execution reaches a fork:

👉 Camunda:

  • Creates multiple tokens

  • Executes all outgoing paths simultaneously

Example:

  • Send email

  • Update database

  • Call external API

👉 All run in parallel

🔹 3. Join (Synchronization)


At join gateway:

👉 Camunda waits until:

  • All incoming tokens arrive

Then:

  • Merges them into one

Key Rule:

👉 Missing token = process stuck

🔹 4. Common Deadlock Scenario


Deadlock occurs when:

❌ Not all tokens reach the join
❌ One branch is skipped
❌ Conditional logic breaks flow

Example:

  • Fork → 3 paths

  • Only 2 paths complete

👉 Join waits forever → Process stuck

🔹 5. Why Deadlocks Happen


Common reasons:

  • Mixing conditions with parallel gateway

  • Missing execution path

  • Improper modeling

  • External task failure

🔹 6. How to Fix Deadlocks


✅ Best practices:

✔ Ensure equal paths in fork & join
✔ Avoid conditional logic in parallel flows
✔ Use inclusive gateway if needed
✔ Add proper error handling

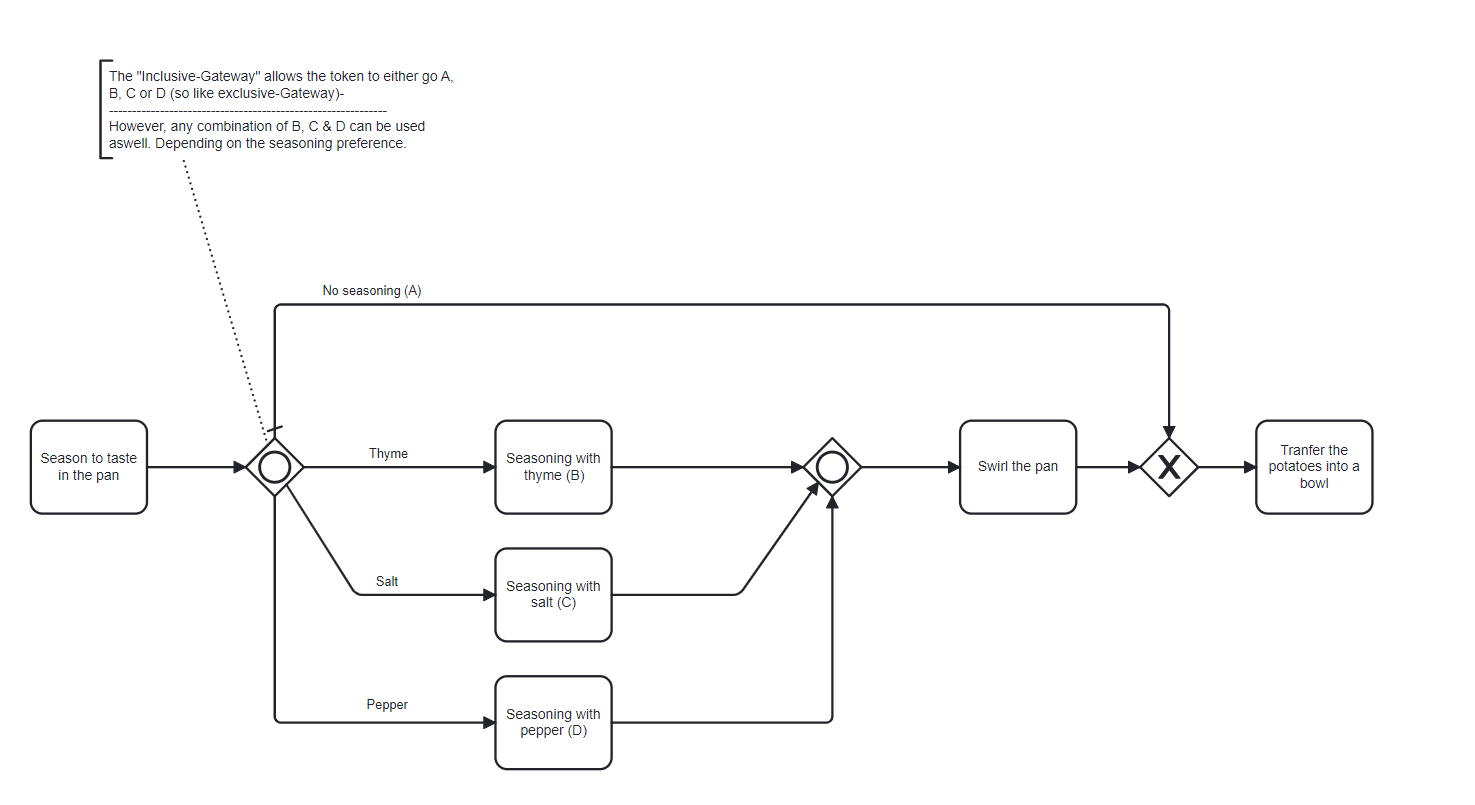

🔹 7. Parallel Gateway vs Inclusive Gateway


FeatureParallel GatewayInclusive Gateway
Conditions❌ No✅ Yes
ExecutionAll pathsSelected paths
Join behaviorWait allWait active paths

🔹 8. Best Practices

✔ Use parallel gateway only when ALL paths must run
✔ Always match fork & join
✔ Avoid mixing with conditions
✔ Monitor stuck executions

🔹 9. Summary

  • Parallel gateway = AND logic

  • Fork → creates multiple tokens

  • Join → waits for all tokens

  • Deadlocks happen due to missing tokens

👉 Proper modeling avoids most issues
