Jira Service Management Series — Part 2



From ITIL Concepts to Real Support Automation in Jira Service Management

This part moves beyond basics and shows how real IT support teams design their service desk — properly structured requests, SLAs, approvals, and automation.

You’ll learn:

  • ITIL mapped inside Jira Service Management

  • Designing clean request types & forms

  • SLA configuration (real example)

  • Approval workflows (step-by-step)

  • Automation rules that reduce tickets

1) Understanding ITIL Concepts Inside JSM

Jira Service Management is built around ITIL — but simplified.

ITIL TermMeaningJira Equivalent
IncidentSomething brokenIncident request
Service RequestNeed access/helpRequest type
ProblemRoot causeProblem issue
ChangePlanned modificationChange request

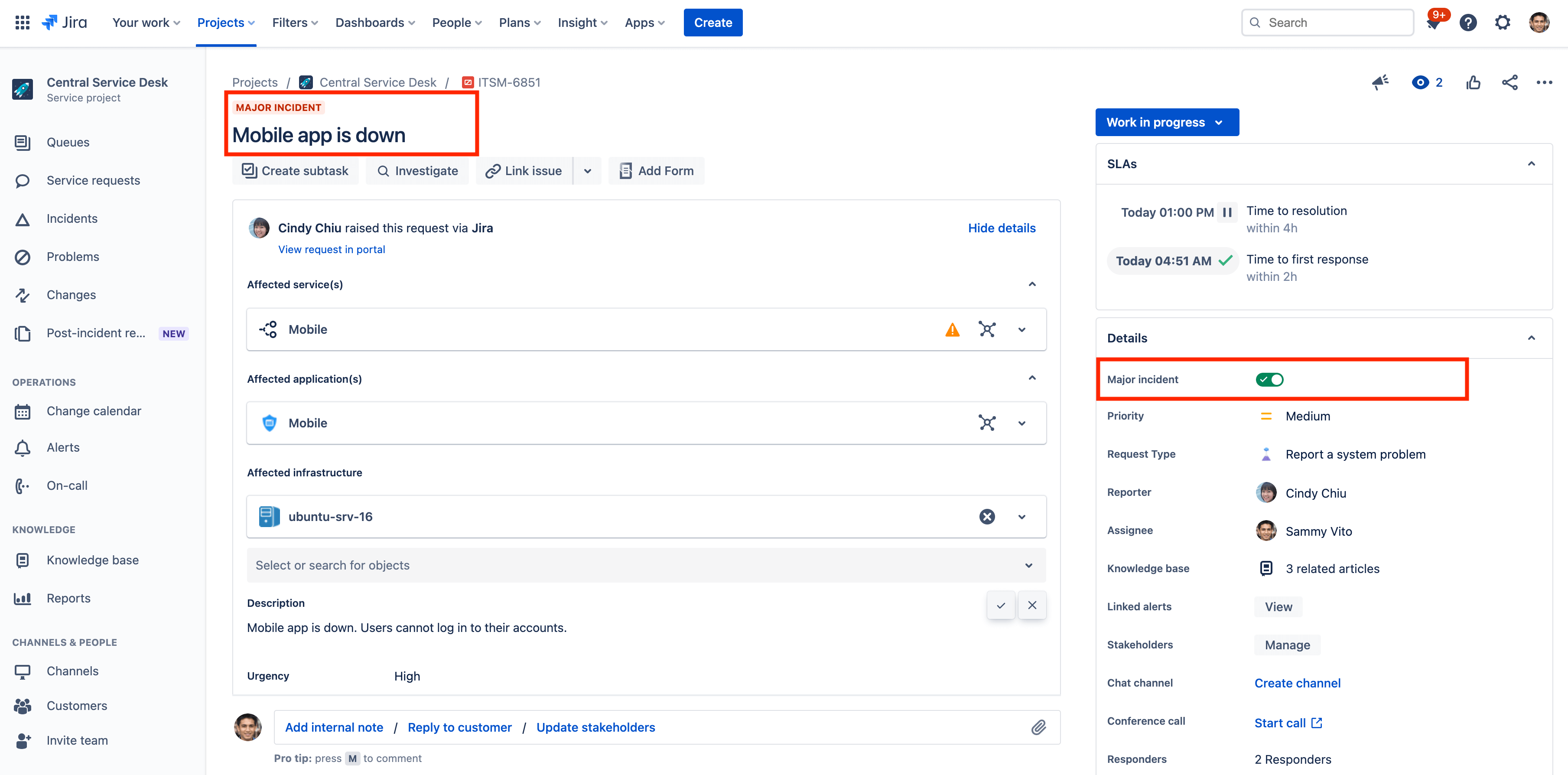

Incident vs Service Request (Very Important)

4

Incident → Email not working → urgent
Service Request → Need VPN access → planned

Mixing these is the #1 mistake in companies

2) Designing Request Types & Forms Properly

Badly designed portals create chaos.

Goal

User should not think → system should guide

Recommended Request Type Structure

IT Support
 ├── Access Request
 ├── Software Installation
 ├── Hardware Issue
 ├── Network Issue
 └── New Employee Setup

Form Design Rules

4

Golden Principles

  • Ask minimum questions

  • Use dropdowns (not text)

  • Conditional fields

  • Never expose internal fields

Bad Form Example

“Describe your problem”

Good Form Example

  • Device Type

  • Error Message

  • Location

  • Urgency

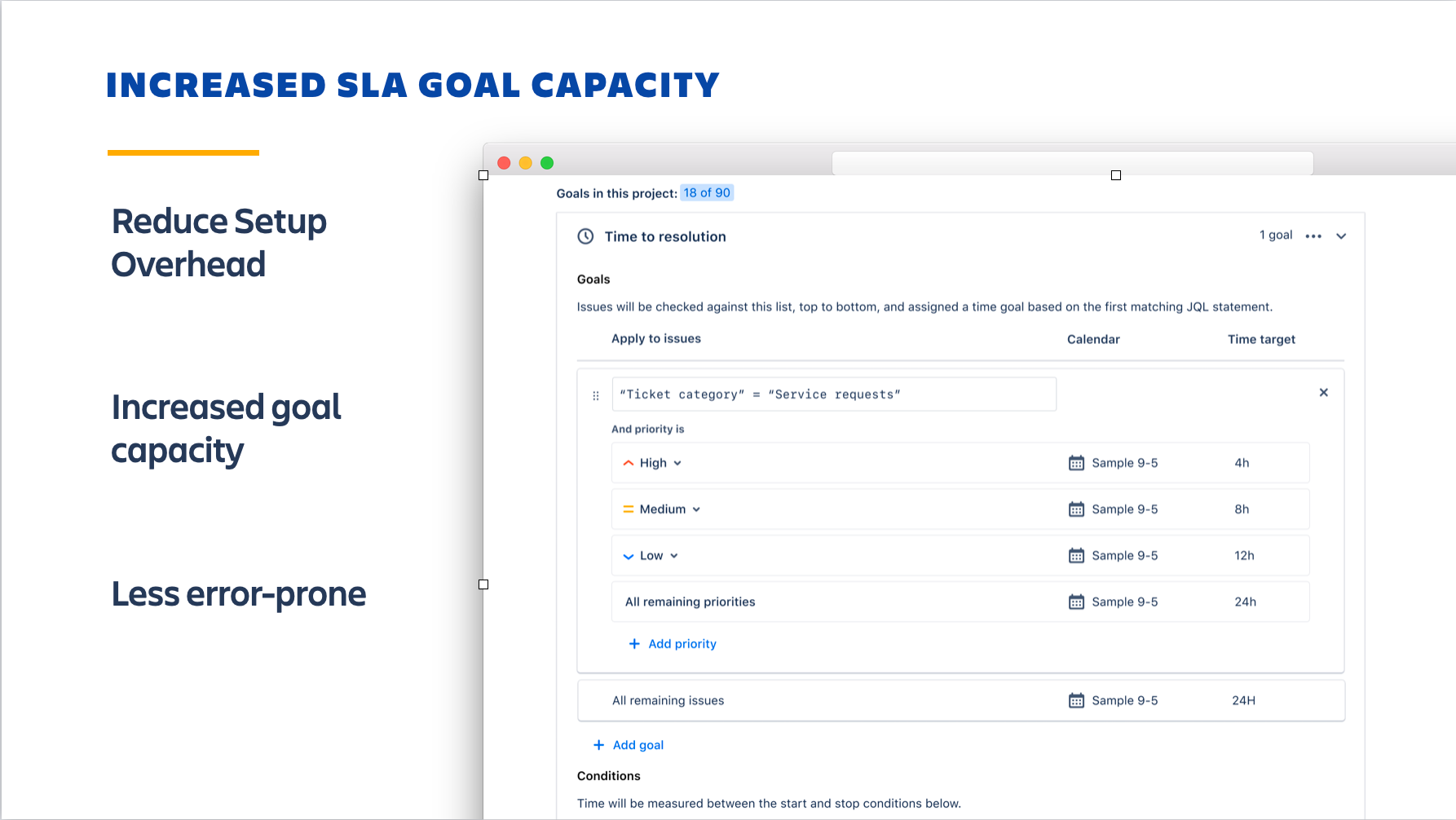

3) SLA Configuration Explained (Real Example)

Most admins configure SLA but never understand it.

Scenario — Laptop Not Working

PriorityResponse TimeResolution Time
Critical15 min4 hrs
High30 min8 hrs
Medium4 hrs2 days
Low1 day5 days

SLA Setup Logic

4

SLA = timer running on issue conditions

Important Concepts

Start: Ticket created
Pause: Waiting for customer
Stop: Resolved

4) Workflow & Approval Design (Step-by-Step)

Approvals should not be emails — they must be controlled states.

Example — Software Installation Approval

4

Workflow

Open → Manager Approval → IT Work → Done

Key Rules

  • Approval before work starts

  • Reject returns to requester

  • Auto close after completion

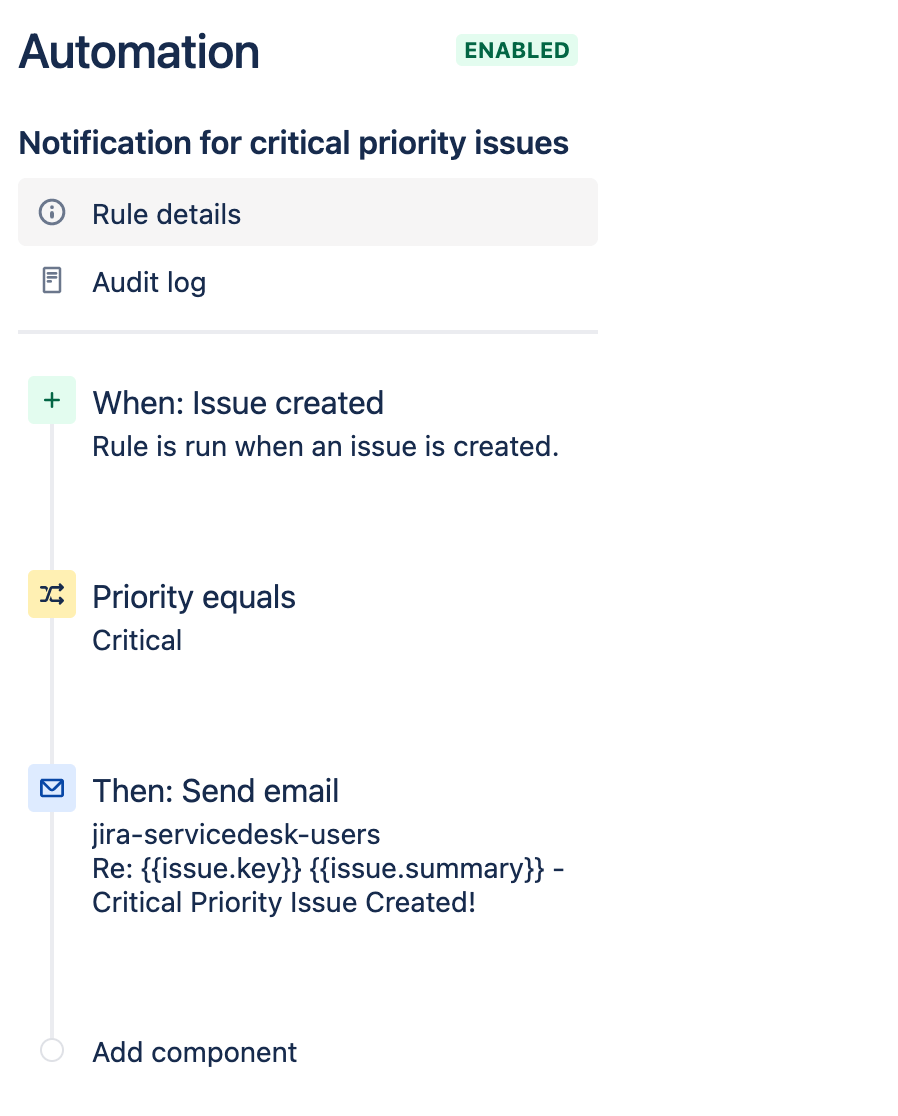

5) Automation Rules for IT Support Teams

Automation converts service desk into scalable system.

Essential Automations

4

Must-Have Rules

TriggerAction
Ticket createdAssign to team
Waiting for customer 3 daysReminder
Resolved 5 daysAuto close
VIP user ticketHigh priority

Recommendation Section (Production Setup Guide)

Priority Matrix

Impact + Urgency = Priority

Never let users select priority directly.

Mandatory Governance Rules

✔ Separate Incident & Service Request projects
✔ Approval only for financial/security requests
✔ SLA pause when waiting for user
✔ Automation for repetitive actions

Real Enterprise Structure

  • Level 1 → Helpdesk

  • Level 2 → Application Team

  • Level 3 → Engineering

What You Achieved After Part-2

You can now:

  • Implement ITIL in Jira properly

  • Design clean portal forms

  • Configure working SLAs

  • Build approval workflows

  • Automate IT support operations

Next Part

Part-3 — Jira Service Management — Advanced Implementation Series
