Camunda 8 vs Camunda 7 – Architecture, Scaling & Use Cases Explained (2026)

Introduction

If you're working in BPM, workflow automation, or microservices orchestration, you’ve probably asked:

👉 Should I use Camunda 7 or move to Camunda 8?

The answer is not just about versions — it’s about two completely different architectures and philosophies.

In this guide, we’ll break down:

  • Architecture differences
  • Scalability comparison
  • Real-world use cases
  • When to choose Camunda 7 vs Camunda 8

🏗️ Architecture: Monolith vs Cloud-Native


🔹 Camunda 7 Architecture

  • Monolithic / embedded engine
  • Runs inside your Java application (Spring Boot, app server)
  • Uses relational database (RDBMS) for state
  • Supports embedded, shared, or remote deployment

👉 Tight coupling with application code
👉 Strong ACID transactions

🔹 Camunda 8 Architecture

  • Cloud-native, distributed system
  • Powered by Zeebe engine
  • Uses event streaming instead of traditional DB
  • Runs as a cluster (brokers + gateway)
  • Communication via gRPC APIs

👉 Fully decoupled from application
👉 Designed for microservices & Kubernetes

📌 Key shift:
Camunda 7 = Embedded engine
Camunda 8 = Remote workflow orchestration

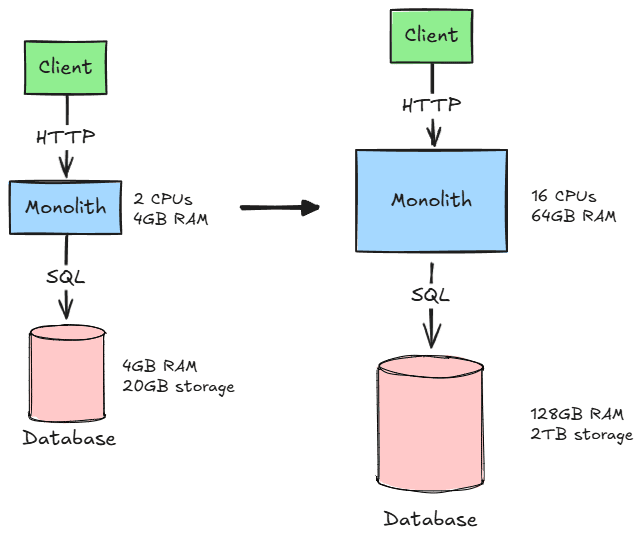

⚡ Scalability: Vertical vs Horizontal


Camunda 7

  • Scales vertically
  • Limited by database performance
  • Each instance tied to application deployment

👉 Works well for:

  • Moderate workloads
  • Traditional enterprise apps

Camunda 8

  • Scales horizontally (linearly)
  • Uses partitioned event streams
  • Distributed execution across brokers

👉 Built for:

  • High throughput workflows
  • Millions of process instances

📌 Key insight:
Camunda 8 removes database bottlenecks → better scalability

🔄 Execution Model & Communication

FeatureCamunda 7Camunda 8
ExecutionSynchronous + asyncFully async
CommunicationREST / Java APIgRPC + APIs
PatternEmbedded delegatesExternal job workers
TransactionsACID supportedEventual consistency

👉 Camunda 8 requires new mindset (event-driven)
👉 Camunda 7 is easier for transaction-heavy apps

🧠 Data Handling & Expressions

  • Camunda 7
    • Supports Java objects, XML, JSON
    • Uses JUEL expressions
  • Camunda 8
    • Uses JSON only
    • Uses FEEL expressions

📌 Migration impact:
You often need data transformation logic in Camunda 8

🔐 Multi-Tenancy & Security

  • Camunda 7:
    • Flexible tenant model
    • Shared resources possible
  • Camunda 8:
    • Strict tenant isolation
    • Modern IAM (OAuth2, OIDC)

👉 Camunda 8 aligns with enterprise cloud security standards

🧩 Use Cases: When to Use What?

✅ Choose Camunda 7 if:

  • You have existing system already running
  • Need strong transactional consistency
  • Monolithic architecture is acceptable
  • Low–medium workload

✅ Choose Camunda 8 if:

  • Building new system
  • Using microservices / event-driven architecture
  • Need high scalability & resilience
  • Planning long-term (5–10 years)

📌 Important:
Camunda 7 is now considered legacy (EOL) and mainly for maintenance use

📊 Quick Comparison Table

CategoryCamunda 7Camunda 8
EngineActiviti-basedZeebe
ArchitectureMonolithic / EmbeddedDistributed / Cloud-native
ScalingVerticalHorizontal
DatabaseRelational DBEvent stream
CommunicationREST / JavagRPC
ExecutionSync + AsyncAsync
Best ForLegacy systemsModern scalable systems

⚠️ Challenges in Camunda 8

  • Learning curve (event-driven mindset)
  • More infrastructure (Kubernetes, cluster)
  • No embedded engine
  • Async complexity for real-time responses

🧠 Final Verdict

👉 Camunda 7 = Stability + Simplicity
👉 Camunda 8 = Scalability + Future

✔ If you're starting fresh → Go with Camunda 8
✔ If you're maintaining legacy → Stay on 7 (plan migration)
