Event-Driven Workflows with Apache Kafka & RabbitMQ

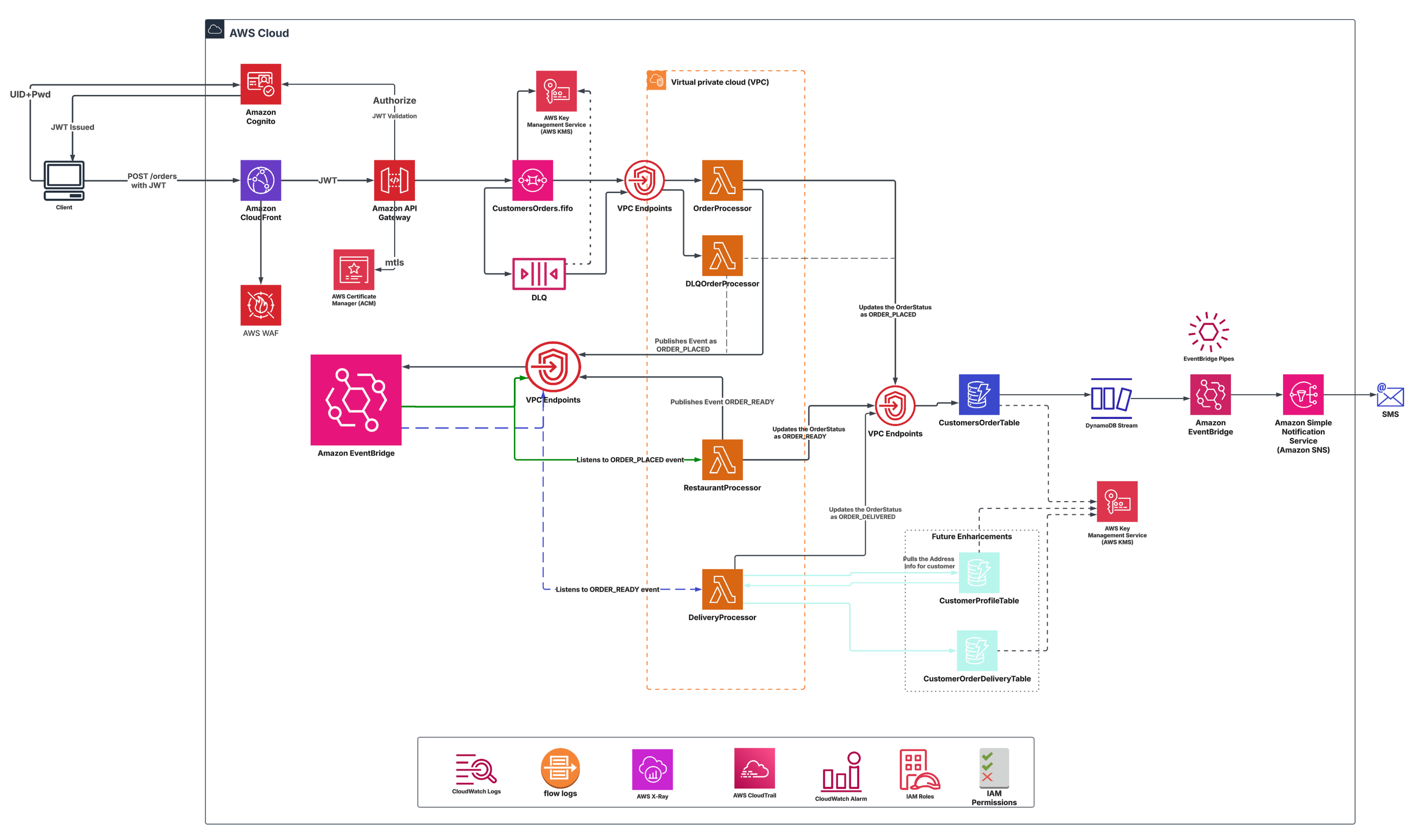

🖼️ Event-Driven Architecture Overview
✍️ Introduction
Modern systems are moving towards event-driven workflows to achieve:
- ⚡ Real-time processing
- 🔁 Loose coupling
- 🚀 High scalability
Technologies like:
- 🟢 Apache Kafka
- 🟠 RabbitMQ
play a critical role in building such architectures.
🧩 1. What are Event-Driven Workflows?
An event-driven workflow is a process where:
👉 Each step is triggered by an event, not a direct call.
🔹 Example Flow
- Order Created → Event
- Payment Processed → Event
- Inventory Updated → Event
- Notification Sent → Event
👉 No tight coupling between services
🖼️ Workflow Triggered by Events
⚙️ 2. Role of Kafka in Workflows
Apache Kafka acts as a central event backbone.
🔹 Responsibilities
- Stores event streams
- Enables replay of workflows
- High throughput processing
👉 Ideal for:
- Streaming workflows
- Data pipelines
- Event sourcing

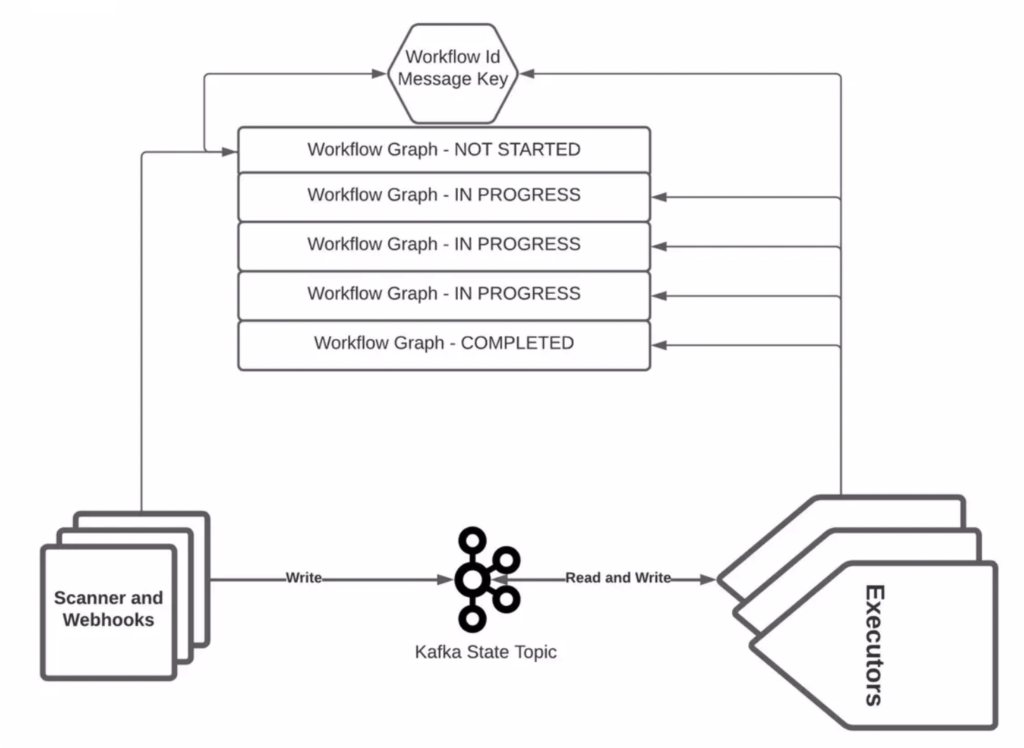

🖼️ Kafka in Workflow
⚙️ 3. Role of RabbitMQ in Workflows
RabbitMQ is best suited for task-based workflows.
🔹 Responsibilities
- Message routing (exchange → queue)
- Retry handling
- Dead-letter queues
👉 Ideal for:
- Task execution
- Background jobs
- Notification systems
🖼️ RabbitMQ in Workflow

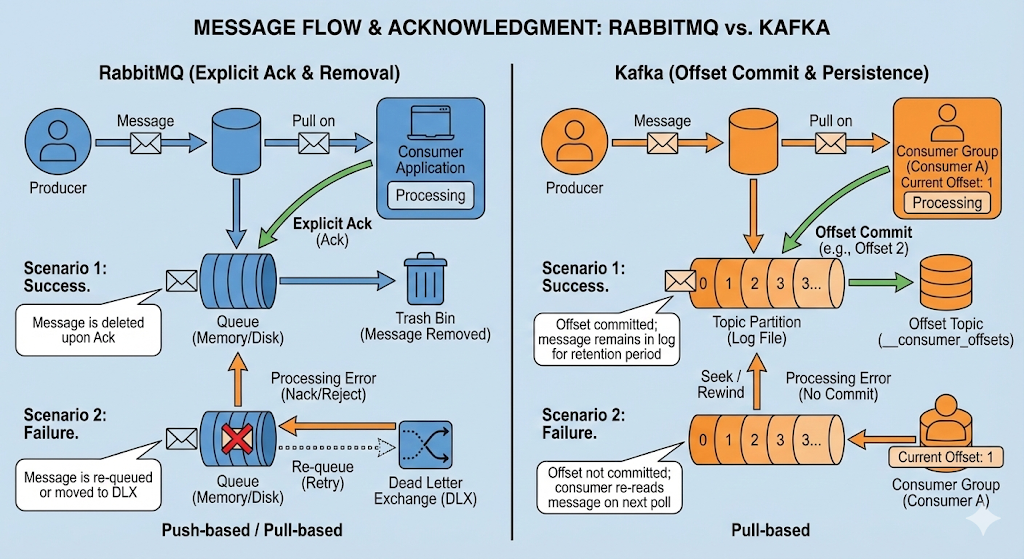

⚖️ 4. Kafka vs RabbitMQ in Workflows
| Feature | Kafka | RabbitMQ |
|---|---|---|
| Workflow Type | Event streaming | Task execution |
| Processing | Continuous | Discrete |
| Replay | Yes | Limited |
| Routing | Simple | Advanced |
| Use Case | Event backbone | Job handling |
🏗️ 5. Combined Architecture (Best Practice)
👉 In real-world systems, both are used together.
🔹 Hybrid Approach
- Kafka → Event backbone
- RabbitMQ → Task execution
🔹 Flow Example
- Order Created → Kafka
- Payment Service consumes → processes
- Payment Task → RabbitMQ
- Worker executes → sends result
- Next event → Kafka
🖼️ Kafka + RabbitMQ Combined
💻 6. Java Implementation Concept
Kafka Producer
kafkaTemplate.send("order-topic", "Order Created");
Kafka Consumer
@KafkaListener(topics = "order-topic")
public void process(String event) {
// trigger next workflow step
}
RabbitMQ Producer
rabbitTemplate.convertAndSend("exchange", "routingKey", "Process Payment");
RabbitMQ Consumer
@RabbitListener(queues = "payment-queue")
public void handle(String task) {
// execute task
}
🧠 7. Event Choreography vs Orchestration
- Choreography → Services react to events
- Orchestration → Central engine controls flow (e.g., Camunda)
👉 Best practice:
- Kafka + RabbitMQ → Choreography
- BPM tools → Orchestration
💡 8. Best Practices
🔹 Design
- Use event schemas
- Avoid tight coupling
- Ensure idempotency
🔹 Kafka
- Use partitions wisely
- Enable retention policies
🔹 RabbitMQ
- Use DLQ for failures
- Configure retries
